MJE13005 Datasheet - Comset Semiconductors

MJE13005 SILICON POWER TRANSISTOR

SEMICONDUCTORS MJE13005 SILICON POWER TRANSISTORS NPN power transistors in a TO-220 package. They are intended for high voltage, high speed power switching inductive circuits where fall time is critical. They are particularly suited for 115V and 220V SWITCHMODE applications such as switching regulator’s, inverters, motor controls, solenoid/relay drivers and deflection circuits Compliance to RoHS. ABSOLUTE MAXIMUM RATINGS Symbol VCEO VCBO VEBO IC ICM IB IBM IE IEM PT tJ ts Ratings Collector-E.

MJE13005_ComsetSemiconductors.pdf

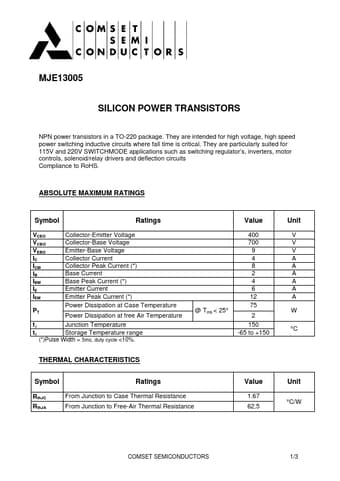

Preview of MJE13005 PDF
MJE13005 Datasheet Preview Page 2 MJE13005 Datasheet Preview Page 3

Datasheet Details

Part number:

MJE13005

Manufacturer:

Comset Semiconductors

File Size:

150.65 KB

Description:

Silicon power transistor.
