TIC225B, TIC225A Datasheet - Comset Semiconductors

TIC225A_ComsetSemiconductors.pdf

TIC225B Datasheet Preview — This datasheet PDF includes multiple part numbers: TIC225B, TIC225A. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

TIC225B, TIC225A

Manufacturer:

Comset Semiconductors

File Size:

215.34 KB

Description:

(tic225x) silicon bidirectional triode thyristor.

Note:

This datasheet PDF includes multiple part numbers: TIC225B, TIC225A.
Please refer to the document for exact specifications by model.

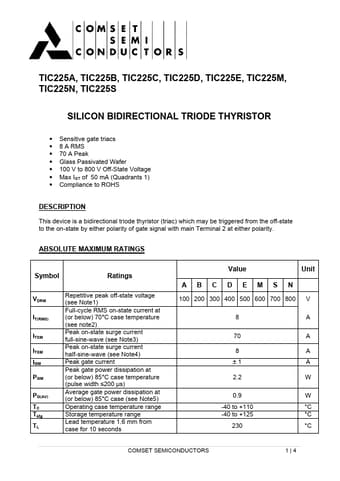

TIC225B, TIC225A, (TIC225x) SILICON BIDIRECTIONAL TRIODE THYRISTOR

This device is a bidirectional triode thyristor (triac) which may be triggered from the off-state to the on-state by either polarity of gate signal with main Terminal 2 at either polarity.

ABSOLUTE MAXIMUM RATINGS http://www.DataSheet4U.net/ Symbol VDRM IT(RMS) ITSM ITSM IGM PGM PG(AV) TC Tstg TL
