TIP131, TIP130 Silicon NPN Darlington Power Transistors

TIP131 Description

SEMICONDUCTORS NPN TIP130 * 131 * 132 SILICON DARLINGTON POWER TRANSISTORS NPN epitaxial-base transistors in a monolithic Dalrington .

TIP131 Applications

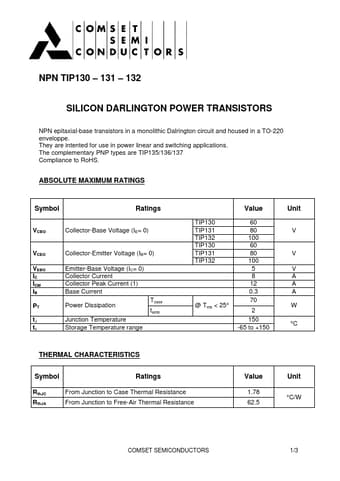

* The complementary PNP types are TIP135/136/137 Compliance to RoHS. ABSOLUTE MAXIMUM RATINGS Symbol VCBO Ratings Collector-Base Voltage (IE= 0) http://www. DataSheet4U. net/ Value TIP130 TIP131 TIP132 TIP130 TIP131 TIP132 60 80 100 60 80 100 5 8 12 0.3 70 2 150 -65 to +150 Unit V VCEO VEBO IC IC

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: TIP131, TIP130. Please refer to the document for exact specifications by model.
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
TIP131, TIP130
Manufacturer
Comset Semiconductors
File Size
150.08 KB
Datasheet
TIP130_ComsetSemiconductors.pdf
Description
Silicon NPN Darlington Power Transistors
Note
This datasheet PDF includes multiple part numbers: TIP131, TIP130.
Please refer to the document for exact specifications by model.
