DCT-250 Datasheet - Condor

DCT-250 Power Supply - DC/DC

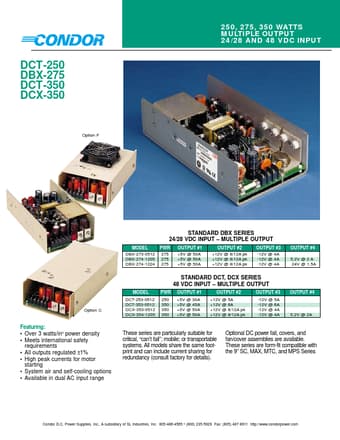

250, 275, 350 WATTS MULTIPLE OUTPUT 24/28 AND 48 VDC INPUT DCT-250 DBX-275 DCT-350 DCX-350 Option F STANDARD DBX SERIES 24/28 VDC INPUT MULTIPLE OUTPUT MODEL DBX-273-0512 DBX-274-1205 DBX-274-1224 PWR 275 275 275 OUTPUT #1 +5V @ 50A +5V @ 50A +5V @ 50A OUTPUT #2 +12V @ 8/12A pk +12V @ 8/12A pk +12V @ 8/12A pk OUTPUT #3 -12V @ 4A -12V @ 4A -12V @ 4A OUTPUT #4 5.2V @ 2 A 24V @ 1.5A STANDARD DCT, DCX SERIES 48 VDC INPUT MULTIPLE OUTPUT MODEL DCT-253-0512 DCT-353-0512 DCX-353.

DCT-250_Condor.pdf
