CX20415 Datasheet - Conexant

CX20415 - Single-Chip FaxEngine Codec

Single-Chip FaxEngine Codec Integrated Analog Device (CX20415) The Conexantâ„¢ Single-Chip FaxEngine Integrated Analog (IA) device (CX20415) is packaged in a 32-pin TQFP package and provides the analog functionality of the modem.

It serves as a voice/line codec and line interface device between the CX9450 DSP and the PSTN.

The DSP communicates with the integrated analog device via a serial interface.

The IA has an 8-bit register that is used to configure the device.

This register may be written

CX20415-Conexant.pdf

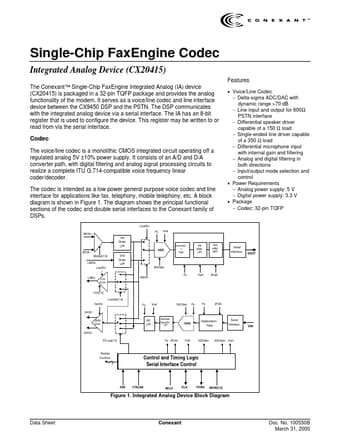

Preview of CX20415 PDF
CX20415 Datasheet Preview Page 2 CX20415 Datasheet Preview Page 3

Datasheet Details

Part number:

CX20415

Manufacturer:

Conexant

File Size:

63.84 KB

Description:

Single-chip faxengine codec.
