DOT050F Datasheet, tcxo/vctcxo equivalent, Connor-Winfield

DOT050F Features

• Tcxo/vctcxo TCXO Model: DOT050F VCTCXO Model: DOT050V
• 3.3 Vdc Operation
• Frequency Stability: ±50 ppb
• Temperature Range: 0 to 70°C
• LVCMOS Output Logic
<

PDF File Details

Part number:

DOT050F

Manufacturer:

Connor-Winfield

File Size:

457.25kb

Download:

📄 Datasheet

Description:

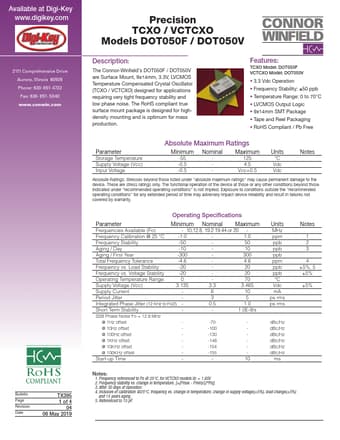

Tcxo/vctcxo. The Connor-Winfield's DOT050F / DOT050V are Surface Mount, 9x14mm, 3.3V, LVCMOS Temperature Compensated Crystal Oscillator (TCXO / V

DOT050F Application

• Applications requiring very tight frequency stability and low phase noise. The RoHS compliant true surface mount package is designed for highdensity

TAGS

DOT050F

Connor-Winfield
