M6020806 Datasheet - Connor-Winfield

Precision Sub-Miniature 5.0x3.2mm TCXO / VCTCXO

M6020806 Features

* 3.3V Operation

* LVCMOS or clipped Sinewave Output Logic

* Sub-Miniature 5.0x3.2mm SMT Package

* Frequency Stabilities Available: ±0.28 ppm with Stratum 3 Holdover ±0.50 ppm or ±1.00 ppm

* Temperature Ranges Available: 0 to 70°C; 0 to 85°C; -20 to

M6020806 General Description

The Connor-Winfield 5.0x3.2mm Temperature Compensated Crystal Oscillators and Voltage Controlled Temperature Compensated Crystal Oscillators are designed for use in applications requiring tight frequency stability in a small package. Through the use of Analog Temperature Compensation, this device i.

M6020806 Datasheet (529.74 KB)

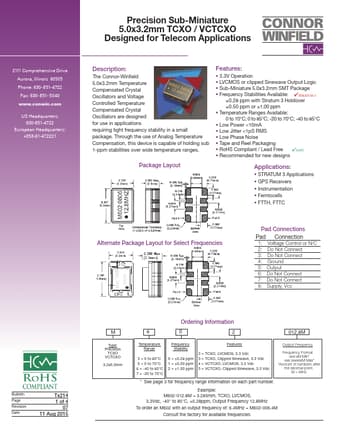

M6020806 Datasheet Preview — Preview of M6020806 PDF

Datasheet Details

Part number:

M6020806

Manufacturer:

Connor-Winfield

File Size:

529.74 KB

Description:

Precision sub-miniature 5.0x3.2mm tcxo / vctcxo.
Precision Sub-Miniature 5.0x3.2mm TCXO / VCTCXO Designed for Telecom Applications 2111 Comprehensive Drive Aurora, Illinois 60505 Phone: 630- 851- 47.
