CMX7164

Multi Mode Modem

Consumer Microcircuits Limited

CMX7164 Features

* Half-duplex modem supports multiple modulations and channel spacings

* 7164FI-1.x o GMSK/GFSK with BT=0.5, 0.3, 0.27 or 0.25 o Over-air compatible with FX/MX909B and CMX7143FI-1.x o Two frame sync detectors o Automatic frame sync detect o Rx carrier frequency correction o Receive s

CMX7164 General Description

The CMX7164 Multi Mode Modem is a half-duplex device currently supporting GMSK/GFSK, 4/16/32/64QAM, 2/4/8/16-Level FSK and V.23 modes in multiple channel spacings under host control. Its
*Function Image (FI) is loaded to initialise the device and determine modulation types. The 7164FI-1.x supp.

CMX7164 Datasheet (4.07 MB)

CMX7164 Datasheet Preview — Preview of CMX7164 PDF

Datasheet Details

Part number:

CMX7164

Manufacturer:

Consumer Microcircuits Limited

File Size:

4.07 MB

Description:

Multi mode modem.

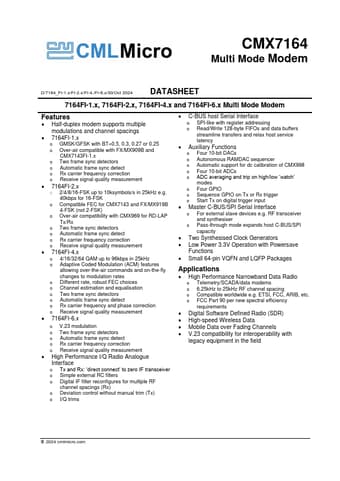

CMX7164 Multi Mode Modem D/7164_FI-1.x/FI-2.x/FI-4./FI-6.x/30/Oct 2024 DATASHEET 7164FI-1.x, 7164FI-2.x, 7164FI-4.x and 7164FI-6.x Multi Mode Modem.
