CIL2328, CIL928A - (CIL928A / CIL2328) SILICON PLANAR EPITAXIAL TRANSISTORS

Continental Device India Limited

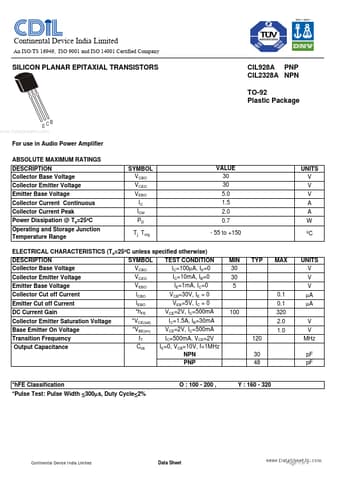

CIL2328 Datasheet Preview — This datasheet PDF includes multiple part numbers: CIL2328, CIL928A. Please refer to the document for exact specifications by model.

Datasheet Details

Part number	CIL2328, CIL928A
Manufacturer	Continental Device India Limited
File Size	136.71 KB
Description	(CIL928A / CIL2328) SILICON PLANAR EPITAXIAL TRANSISTORS
Datasheet	CIL928A_ContinentalDeviceIndiaLimited.pdf
Note	This datasheet PDF includes multiple part numbers: CIL2328, CIL928A. Please refer to the document for exact specifications by model.

CIL2328 Product details

Description

Collector Base Voltage Collector Emitter Voltage Emitter Base Voltage Collector Current Continuous Collector Current Peak Power Dissipation @ Ta=25ºC Operating and Storage Junction Temperature Range SYMBOL VCBO VCEO VEBO IC ICM PD Tj, Tstg VALUE 30 30 5.0 1.5 2.0 0.7 - 55 to +150 UNITS V V V A A W ºC ELECTRICAL CHARACTERISTICS (Ta=25ºC unless specified otherwise) DESCRIPTION Collector Base Voltage Collector Emitter Voltage Emitter Base Voltage Collector Cut off Current Emitter Cut off Current D
