CKA15N65L1 650V 15A Trench FS IGBT

Description

1..

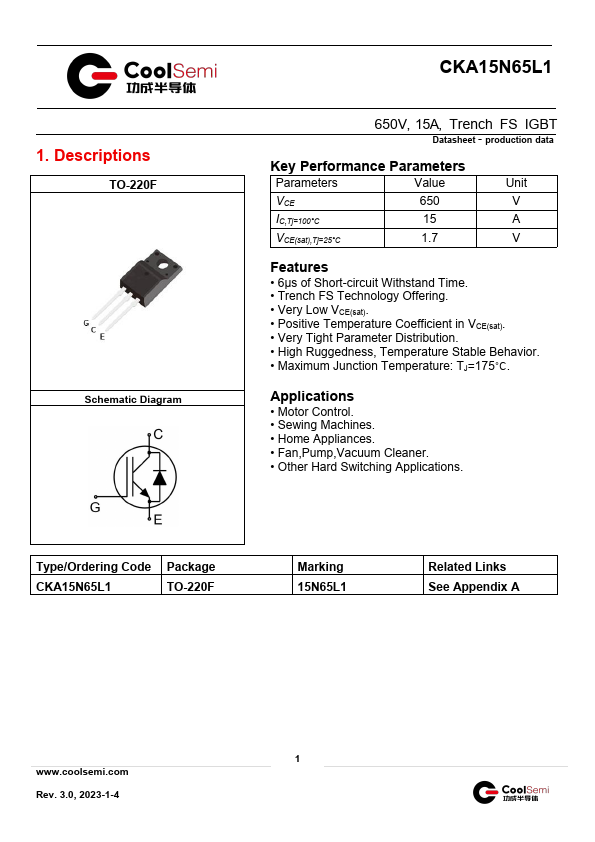

TO-220F Schematic Diagram CKA15N65L1 650V, 15A, Trench FS IGBT Datasheet - production data Key Performance Parameters Parameters Value Unit VC.

📥 Download Datasheet

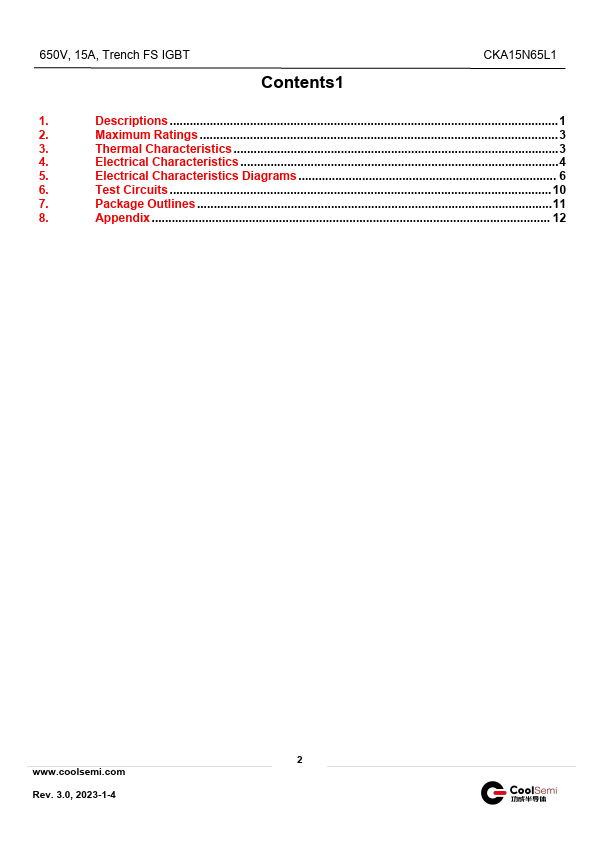

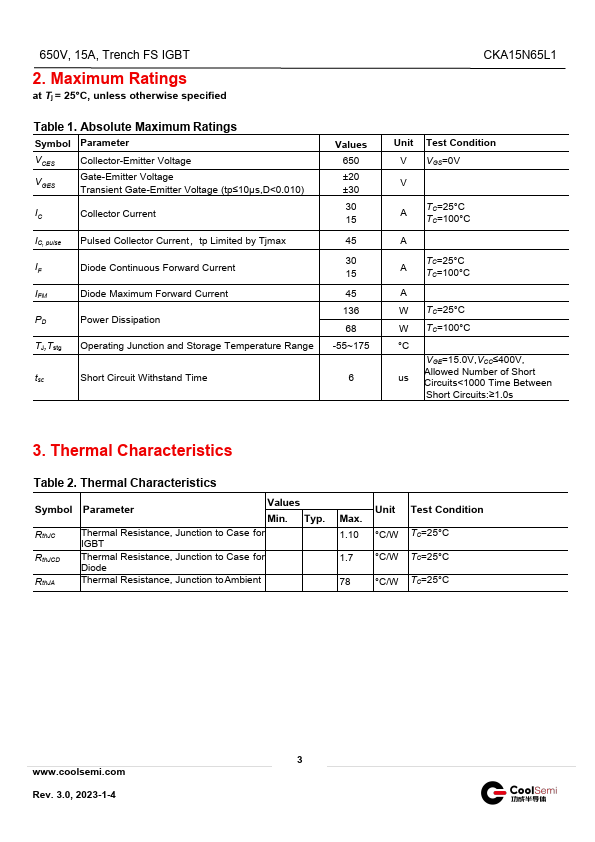

CKA15N65L1 Datasheet Preview — Preview of CKA15N65L1 PDF

Datasheet Specifications

Part number: CKA15N65L1
Manufacturer: CoolSemi
File Size: 1.54 MB
Datasheet: CKA15N65L1-CoolSemi.pdf
Description: 650V 15A Trench FS IGBT

Features

* 6µs of Short-circuit Withstand Time.
* Trench FS Technology Offering.
* Very Low VCE(sat).
* Positive Temperature Coefficient in VCE(sat).
* Very Tight Parameter Distribution.
* High Ruggedness, Temperature Stable Behavior.
* Maximum Junction

Applications

* Motor Control.
* Sewing Machines.
* Home Appliances.
* Fan,Pump,Vacuum Cleaner.
* Other Hard Switching Applications. Type/Ordering Code Package CKA15N65L1 TO-220F Marking 15N65L1 Related Links See Appendix A 1 www. coolsemi. com Rev. 3.0, 2023-1-4 650V,

CKA15N65L1 Distributors
