DR1030-121-R

Low Profile Power Inductors

DR1030-121-R General Description



* 125°C maximum total temperature operation

* Low profile surface mount inductors

* 10.3mm x 10.5mm x 3.0mm shielded drum core

* Ferrite core material

* Inductance range from 1.1µH to 150µH

* Current range from 9.5 Amps to 0.68 Amps

* Frequency.

DR1030-121-R Datasheet (177.67 KB)

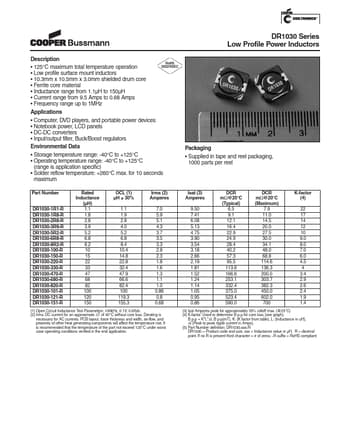

Preview of DR1030-121-R PDF

Datasheet Details

Part number:

DR1030-121-R

Manufacturer:

Cooper Bussmann

File Size:

177.67 KB

Description:

Low profile power inductors.
