CXW8508 Datasheet, regulator equivalent, Core Micro Technology

CXW8508 Features

  • Regulator z 2A Output Current z Wide 4.75V to 25V Operating Input Range z Integrated 100mΩ Power MOSFET Switches z Output Adjustable from 0.925V to 20V z Up to 95% Efficiency z Programmable Soft-

PDF File Details

Part number:

CXW8508

Manufacturer:

Core Micro Technology

File Size:

576.84kb

Download:

📄 Datasheet

Description:

Monolithic synchronous buck regulator. The CX8508 is a monolithic synchronous buck regulator. The device integrates 100mΩ MOSFETS that provide 2A continuous load current ov

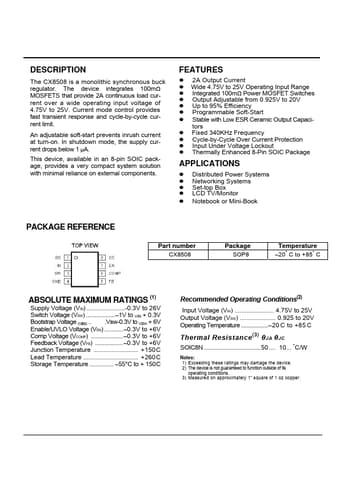

Datasheet Preview: CXW8508 📥 Download PDF (576.84kb)
Page 2 of CXW8508 Page 3 of CXW8508

CXW8508 Application

  • Applications z Distributed Power Systems z Networking Systems z Set-top Box z LCD TV/Monitor z Notebook or Mini-Book PACKAGE REFERENCE Part number

TAGS

CXW8508
Monolithic
synchronous
buck
regulator
Core Micro Technology
