C1250C505T155SV0x0Rxxx - (C1250 Series) Oscillator

📥 Download Datasheet

C1250C505T155SV0x0Rxxx Datasheet Preview — Preview of C1250C505T155SV0x0Rxxx PDF

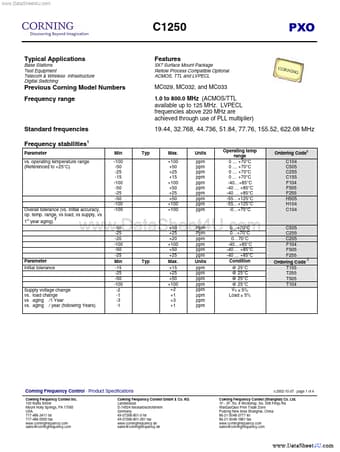

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	C1250C505T155SV0x0Rxxx
Manufacturer	Corning Frequency
File Size	267.37 KB
Description	(C1250 Series) Oscillator
Datasheet	C1250C505T155SV0x0Rxxx_CorningFrequency.pdf

C1250C505T155SV0x0Rxxx Product details

Features

5X7 Surface Mount Package Reflow Process Compatible Optional ACMOS, TTL and LVPECL Previous Corning Model Numbers Frequency range MC029, MC032, and MC033 1.0 to 800.0 MHz (ACMOS/TTL available up to 125 MHz. LVPECL frequencies above 220 MHz are achieved through use of PLL multiplier) Standard frequencies Frequency stabilities1 Parameter vs. operating temperature range (Referenced to +25°C) Min -100 -50 -25 -15 -100 -50 -25 -50 -100 -100 Typ 19.44, 32.768, 44.736, 51.84, 77.76, 155.52, 622.08.
