CH502 Datasheet - Cosemitech

gear tooth sensor

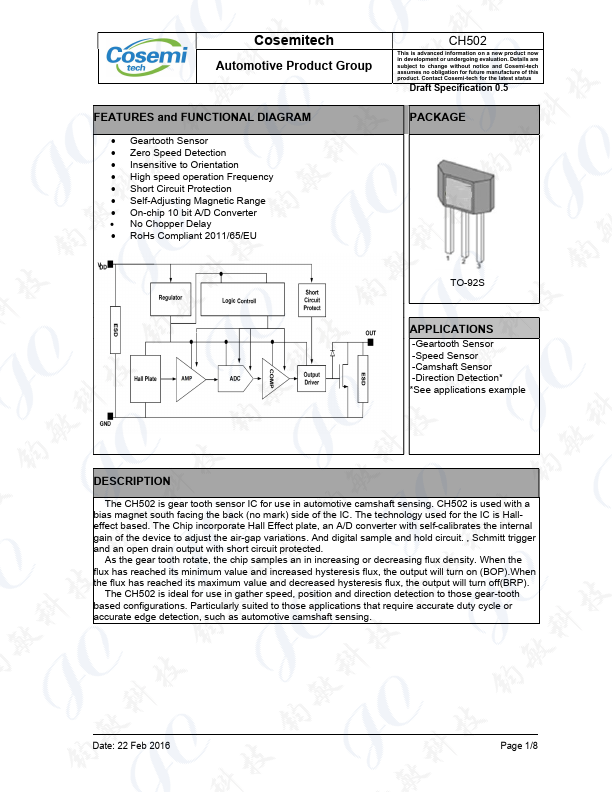

CH502 Features

* and FUNCTIONAL DIAGRAM

* Geartooth Sensor

* Zero Speed Detection

* Insensitive to Orientation

* High speed operation Frequency

* Short Circuit Protection

* Self-Adjusting Magnetic Range

* On-chip 10 bit A/D Converter

* No Chopper Delay

* RoHs Compliant 2011/65/EU

CH502 General Description

The CH502 is gear tooth sensor IC for use in automotive camshaft sensing. CH502 is used with a bias magnet south facing the back (no mark) side of the IC. The technology used for the IC is Halleffect based. The Chip incorporate Hall Effect plate, an A/D converter with self-calibrates the internal ga.

CH502 Datasheet (1.03 MB)

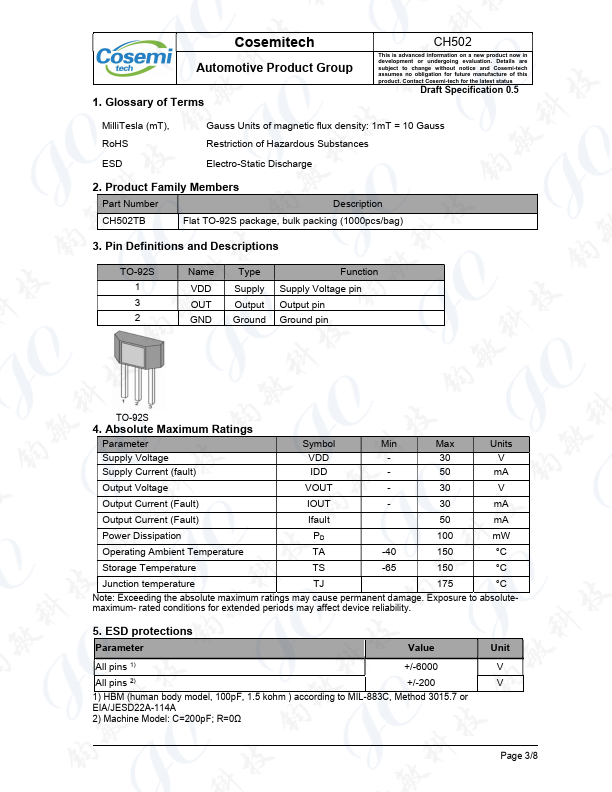

CH502 Datasheet Preview — Preview of CH502 PDF

Datasheet Details

Part number:

CH502

Manufacturer:

Cosemitech

File Size:

1.03 MB

Description:

Gear tooth sensor.
