CH941E Datasheet - Cosemitech

versatile digital Hall-effect

CH941E Features

* and FUNCTIONAL DIAGRAM PACKAGE

* Unipolar respond to a single pole: North (CH941S) or South (CH941T and CH941E), making these products well-suited for shift selectors, wiper end/home position, door ajar/open, and vane-interrupt systems etc.

* Enhanced sensitivity: will operate from Brp

CH941E General Description

The CH941S, CH941E and CH941T are small, versatile digital Hall-effect devices that are operated by the magnetic field from a permanent magnet or an electromagnet. This unipolar sensors are designed to meet the requirements of a wide range of potential applications. These economical unipolar sensor.

CH941E Datasheet (774.24 KB)

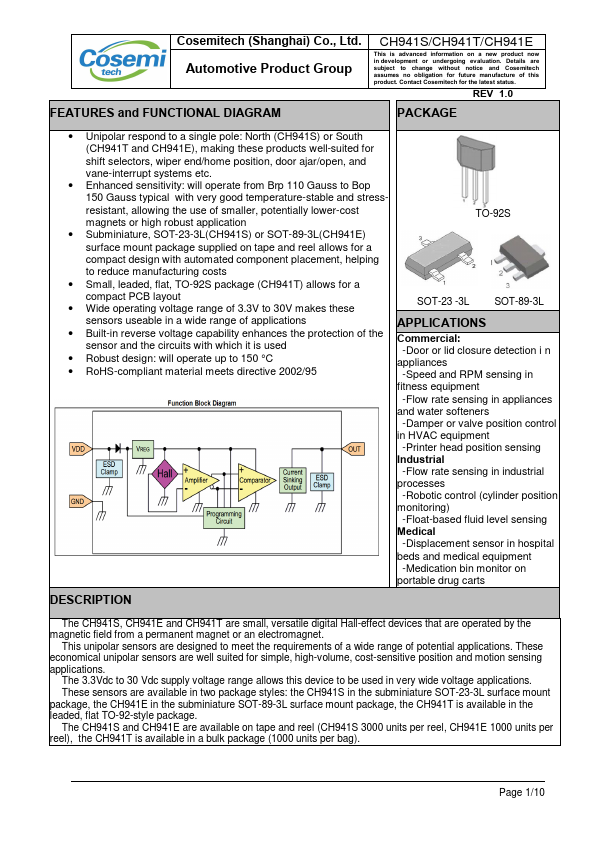

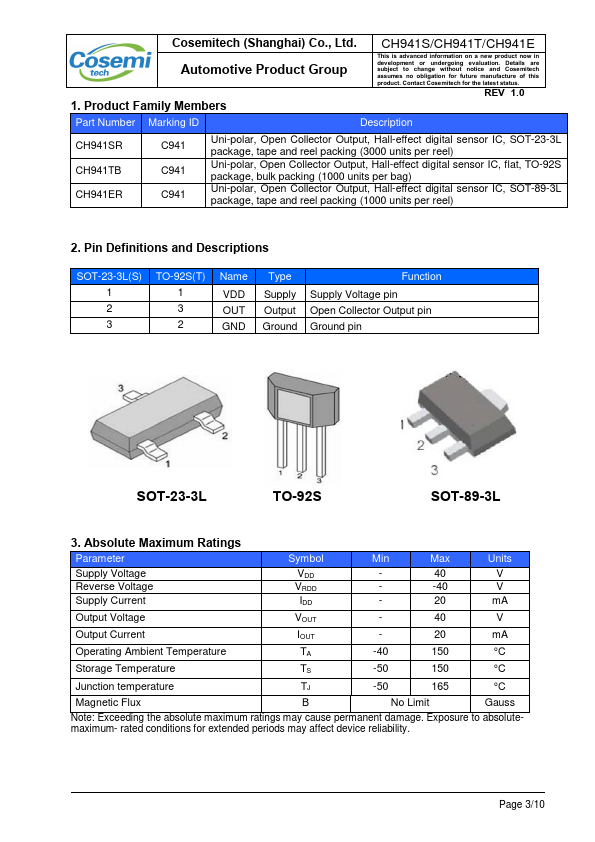

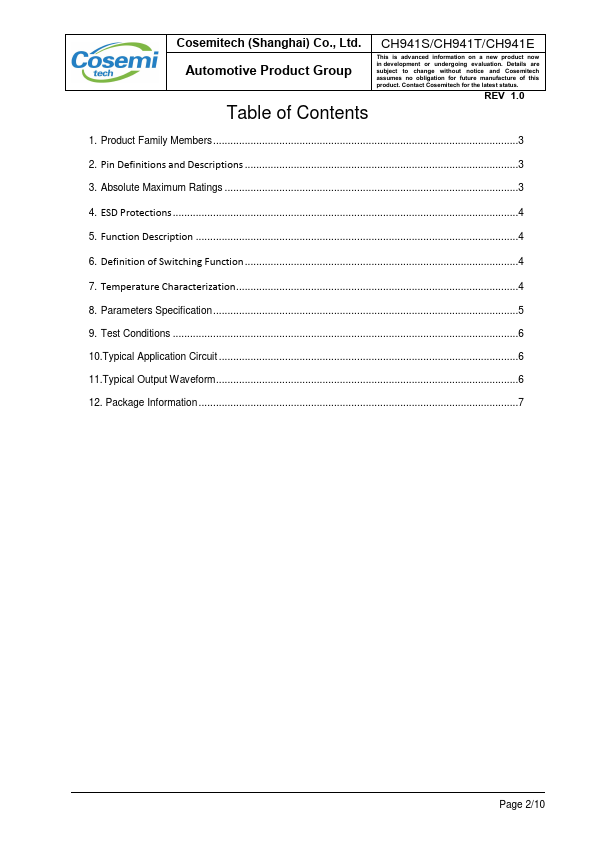

CH941E Datasheet Preview — Preview of CH941E PDF

Datasheet Details

Part number:

CH941E

Manufacturer:

Cosemitech

File Size:

774.24 KB

Description:

Versatile digital hall-effect.
Cosemitech (Shanghai) Co., Ltd. Automotive Product Group CH941S/CH941T/CH941E This is advanced information on a new product now in development or und.
