KAQV213A

SOLID STATE RELAY-MOSFET OUTPUT

KAQV213A Features

* 1. Normally open, single pole single throw 2. Control 250V AC or DC voltage 3. Switch 200mA loads 4. Controls low-level analog signals 5. High sensitivity, low ON resistance 6. Low-level off-state leakage current 7. High isolation voltage 5KV (DIP / SMD) 8. Pb free and RoHS compliant 9. MSL class 1

KAQV213A General Description

The KAQV213 series is robust, ideal for telecom and ground fault applications. It is a SPST normally open switch (1 Form A) that replaces electromechanical relays in many applications. It is constructed using a GaAlAs LED for actuation control and an integrated monolithic die for the switch output. .

KAQV213A Datasheet (275.86 KB)

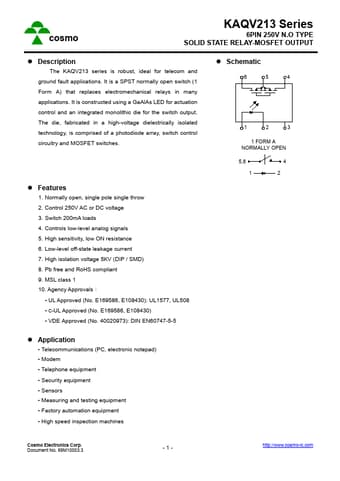

Preview of KAQV213A PDF

Datasheet Details

Part number:

KAQV213A

Manufacturer:

Cosmo

File Size:

275.86 KB

Description:

Solid state relay-mosfet output.
