KAQW212S

SOLID STATE RELAY

Cosmo

KAQW212S Features

* 1. Normally open, double pole single throw 2. Control 60V AC or DC voltage 3. Switch 400mA loads 4. Controls low-level analog signals 5. High sensitivity, low ON resistance 6. Low-level off-state leakage current 7. High isolation voltage 5KV (DIP / SMD) 8. Pb free and RoHS compliant 9. MSL class 1 1

KAQW212S General Description

The KAQW212 series contains two normally open switches that can be used as two independent SPST relays or as one DPST relay. The relay is constructed using a GaAlAs LED for actuation control and an integrated monolithic dies for the switch output. The die, fabricated in a high-voltage dielectrically.

KAQW212S Datasheet (242.43 KB)

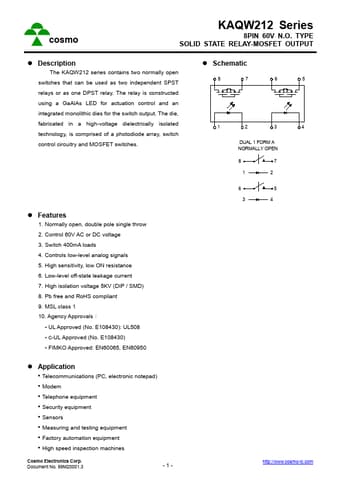

KAQW212S Datasheet Preview — Preview of KAQW212S PDF

Datasheet Details

Part number:

KAQW212S

Manufacturer:

Cosmo

File Size:

242.43 KB

Description:

Solid state relay.
