KP2110L Datasheet, phototransistor equivalent, Cosmo

PDF File Details

Part number: KP2110L

Manufacturer: Cosmo

File Size: 232.54KB

Download: 📄 Datasheet

Description: 6PIN PHOTOTRANSISTOR

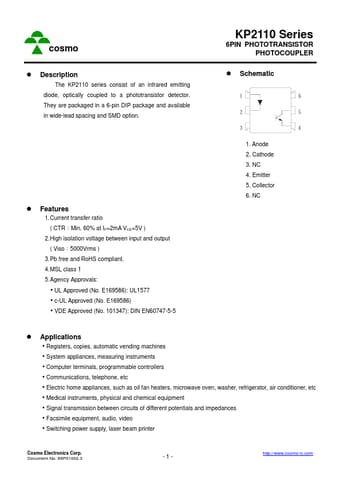

Datasheet Preview: KP2110L 📥 Download PDF (232.54KB)

KP2110L Features and benefits

1.Current transfer ratio ( CTR:Min. 60% at IF=2mA VCE=5V ) 2.High isolation voltage between input and output ( Viso:5000Vrms ) 3.Pb free and RoHS compliant. 4.MSL class 1.

KP2110L Application


* Registers, copies, automatic vending machines
* System appliances, measuring instruments
* Computer termin.

KP2110L Description

The KP2110 series consist of an infrared emitting diode, optically coupled to a phototransistor detector. They are packaged in a 6-pin DIP package and available in wide-lead spacing and SMD option.
* Features 1.Current transfer ratio ( CTR:Min. 6.

Image gallery

Page 2 of KP2110L Page 3 of KP2110L
