KT1310

The KT1310 is 4PIN LSOP PHOTOTRANSISTOR designed by Cosmo.

Product Overview

Cosmo

Part number	KT1310
Manufacturer	Cosmo
File Size	216.39 KB
Description	4PIN LSOP PHOTOTRANSISTOR
Datasheet	KT1310-Cosmo.pdf

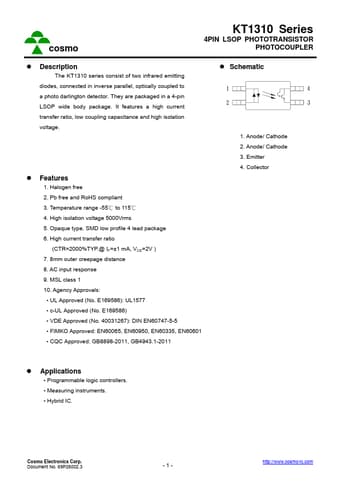

Additional preview pages of the KT1310 datasheet.

The KT1310 series consist of two infrared emitting diodes, connected in inverse parallel, optically coupled to a photo darlington detector.

a high current transfer ratio, low coupling capacitance and high isolation voltage. z Features 1. Halogen free 2. Pb free and RoHS compliant 3. Temperature range -55℃ to 115℃ 4. High isolation voltage 5000Vrms 5. Opaque type, SMD low profile 4 lead package 6. High current transfer ratio (CTR=2000%TYP. @ IF=±1 mA, VCE=2V ) 7. 8mm outer creepage distance 8. AC input response 9. MSL class 1 10. Agency Approvals:.
UL Approved (No. E169586): UL1577.
c-UL Approved (No. E169586).
