MC1505

Double Balanced Mixer

Cougar Components

Image	Manufacturer	Part Number	B2B mpn	Description	Distributor	Stock	Quantity	Price	Buy Now
	Harwin	MC1505	G125-MC15005M1-0450L	Rectangular Cable Assemblies 1.25MM M/L CA 2X25 450MM 26AWG	Mouser Electronics	44	1 units	$186.22	🛒 Buy Now

📥 Download PDF (197.64 KB)

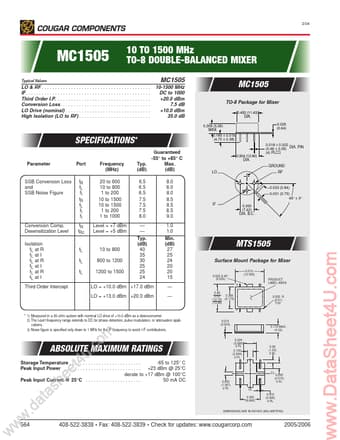

MC1505 Datasheet Preview Page 1 — Preview of MC1505 Datasheet

Datasheet Details

Part number:

MC1505

Manufacturer:

Cougar Components

File Size:

197.64 KB

Download:

📄 Download MC1505 Datasheet PDF

Description:

Double balanced mixer.
2/04 MC1505 Typical Values 10 TO 1500 MHz TO-8 DOUBLE-BALANCED MIXER MC1505 10-1500 MHz DC to 1000.
+20.0 dBm 7.5 dB +10.0 dBm 35.0 dB 0.208 (5.28) MAX. TO-8 Mixer Package LO & RF . . . . . . . . ..

✔ MC1505 Application

3) Noise figure is specified only down to 1 MHz for the IF frequency to avoid 1/F contributions. 0.010 (0.

📁 Related Datasheet

MC1500 - (MC1500 / MC1400) Laser Trimmed Silicon Monolithic Integrated Circuit (Motorola)

MC1500A - (MC1500 / MC1400) Laser Trimmed Silicon Monolithic Integrated Circuit (Motorola)

MC1502 - Double Balanced Mixer (Cougar Components)

MC1504 - Voltage Reference (Motorola)

MC1504A - Voltage Reference (Motorola)

MC1507 - Double Balanced Mixer (Cougar Components)

MC1508-8 - (MC1508-8 / MC1408-8) 8-Bit Multiplying D/A Converter (NXP)

MC1514 - (MC1414 / MC1514) DUAL DIFFERENTIAL COMPARATOR (Motorola)
