CGHV22100 - GaN HEMT

General Description

RES, 1/16 W, 0603, 1%, 10.0 OHMS RES, 1/16 W, 0603, 1%, 5.1 OHMS CAP, 470 pF, 5%, 100 V, 0603, X CAP, 1.0 UF, 100 V, 10%, x7R, 121 CAP, 100 UF, 20%, 160 V, ELEC CAP, 10 UF, 16 V, TANTALUM, 2312 CAP, 10.0 pF, 5%, 0603, ATC CAP, 33000 pF, 0805, 100 V, X7R CAP, 10 pF, 5%, 250 V, 0805, A CONN, N, FEM, W

Key Features

  • 1.8 - 2.2 GHz Operation.
  • 20 dB Gain.
  • -35 dBc ACLR at 25 W PAVE.
  • 31-35 % Efficiency at 25 W PAVE.
  • High Degree of DPD Correction Can be Applied Rev 2.0.
  • May 2015 Subject to change without notice. www. cree. com/rf 1 Absolute Maximum Ratings (not simultaneous) at 25˚C Case Temperature Parameter Symbol Rating Drain-Source Voltage Gate-to-Source Voltage Storage Temperature Operating Junction Temperature3 Maximum Forward Gate Current Ma.

📥 Download Datasheet

Full PDF Text Transcription for CGHV22100 (Reference)

Note: Below is a high-fidelity text extraction (approx. 800 characters) for CGHV22100. For precise diagrams, and layout, please refer to the original PDF.

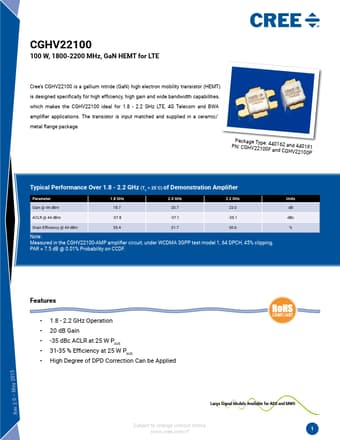

CGHV22100 100 W, 1800-2200 MHz, GaN HEMT for LTE Cree’s CGHV22100 is a gallium nitride (GaN) high electron mobility transistor (HEMT) is designed specifically for high ef...

View more extracted text
ectron mobility transistor (HEMT) is designed specifically for high efficiency, high gain and wide bandwidth capabilities, which makes the CGHV22100 ideal for 1.8 - 2.2 GHz LTE, 4G Telecom and BWA amplifier applications. The transistor is input matched and supplied in a ceramic/ metal flange package. PNPa: CckGaHgVe2T2y1p0e0: F44a0n1d6C2GaHndV2424100106P1 Typical Performance Over 1.8 - 2.2 GHz (TC = 25˚C) of Demonstration Amplifier Parameter 1.8 GHz 2.0 GHz 2.2 GHz Gain @ 44 dBm 18.7 20.7 22.0 ACLR @ 44 dBm -37.8 -37.1 -35.1 Drain Efficiency @ 44 dBm 35.4 31.7 30.
