2KBP005M - Glass Passivated Single-Phase Bridge Rectifier

📥 Download Datasheet

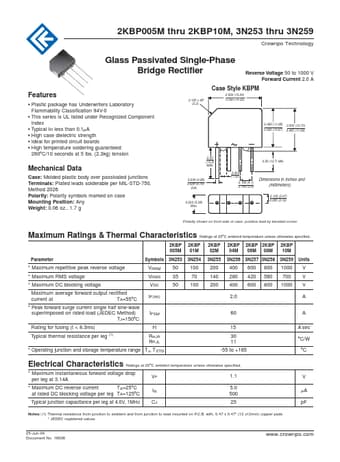

2KBP005M Datasheet Preview — Preview of 2KBP005M PDF

datasheet Preview Page 2

Datasheet Details

Part number	2KBP005M
Manufacturer	Crownpo
File Size	33.03 KB
Description	Glass Passivated Single-Phase Bridge Rectifier
Datasheet	2KBP005M-Crownpo.pdf

2KBP005M Product details

Features

N Plastic package has Underwriters Laboratory Flammability Classification 94V-0 N This series is UL listed under Recognized Component Index N Typical IR less than 0.1eA N High case dielectric strength N Ideal for printed circuit boards N High temperature soldering guaranteed: 260-C/10 seconds at 5 lbs. (2.3kg) tension Mechanical Data Case: Molded plastic body over passivated junctions Terminals: Plated leads solderable per MIL-STD-750, Method 2026 Polarity: Polarity symbols marked on case Mounti.
