| Part number | HDC200A160 |
|---|---|
| Manufacturer | Crydom |
| File Size | 796.12 KB |
| Description | (HDC200x1x0) HDC Series Panel Mount |
| Datasheet |

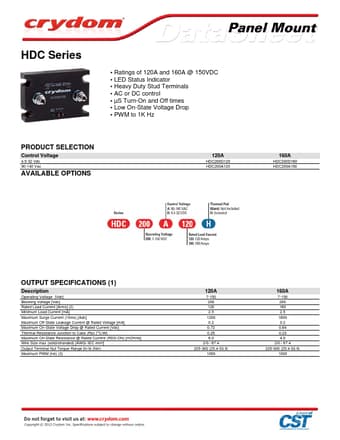

 HDC200A160 Datasheet
|
| Note |
This datasheet PDF includes multiple part numbers: HDC200A160, HDC200D120. Please refer to the document for exact specifications by model. |
|
|
Operating Voltage [Vdc] Blocking Voltage [Vdc] Rated Load Current [Arms] (2) Minimum Load Current [mA] Maximum Surge Current (10ms) [Adc] Maximum Off-State Leakage Current @ Rated Voltage [mA] Maximum On-State Voltage Drop @ Rated Current [Vdc] Thermal Resistance Junction to Case (Rjc) [°C/W] Maximum On-State Resistance @ Rated Current (RDS-ON) [mOhms] Wire Size max (solid/stranded) [AWG/ IEC mm²] Output Terminal Nut Torque Range [in lb (Nm) Maximum PWM (Hz) (3) 120A 7-150 200 120 2.5 1200 0.2
