SA22, SA20 Datasheet - Crydom

SA22 Transient Voltage Suppression (TVS) Diodes

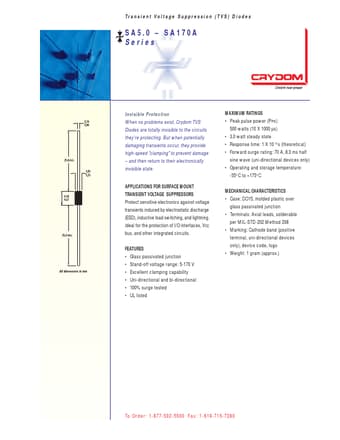

Transient Voltage Suppression (TVS) Diodes SA5.0 SA170A Series Invisible Protection When no problems exist, Crydom TVS Diodes are totally invisible to the circuits they're protecting. But when potentially damaging transients occur, they provide high-speed "clamping" to prevent damage and then return to their electronically invisible state. APPLICATIONS FOR SURFACE MOUNT TRANSIENT VOLTAGE SUPPRESSORS Protect sensitive electronics against voltage transients induced by electros.

SA22 Features

* Glass passivated junction

* Stand-off voltage range: 5-170 V

* Excellent clamping capability

* Uni-directional and bi-directional

* 100% surge tested

* UL listed MAXIMUM RATINGS

* Peak pulse power (PPK): 500 watts (10 X 1000 µs)

* 3.

SA22, SA20 Datasheet

SA22 Datasheet Preview — This datasheet PDF includes multiple part numbers: SA22, SA20. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

SA22, SA20

Manufacturer:

Crydom

File Size:

47.82 KB

Description:

Transient voltage suppression (tvs) diodes.

This datasheet PDF includes multiple part numbers: SA22, SA20. Please refer to the document for exact specifications by model.
