CY12BPS Quartz Crystal Low Profile HC49S Leaded Crystal

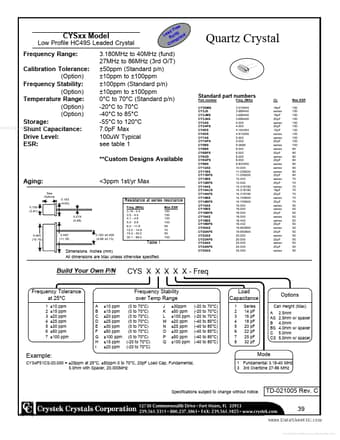

Low Profile HC49S Leaded Crystal Frequency Range: Calibration Tolerance: (Option) Frequency Stability: (Option) Temperature Range: (Option) (Option) Storage: www.DataSheet4U.com Shunt Capacitance: Drive Level: ESR: CYSxx Model ree dF S a Le oH ant R pli m Co Quartz Crystal 3.180MHz to 40MHz (fund) 27MHz to 86MHz (3rd O/T) ±50ppm (Standard p/n) ±10ppm to ±100ppm ±100ppm (Standard p/n) ±10ppm to ±100ppm 0°C to 70°C (Standard p/n) -20°C to 70°C -40°C to 85°C -55°C to 120°C 7.0pF Max 100uW Typic.

CY12AS_CrystekCorporation.pdf

CY12BPS Datasheet Preview — This datasheet PDF includes multiple part numbers: CY12BPS, CY12AS. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

CY12BPS, CY12AS

Manufacturer:

Crystek Corporation

File Size:

206.67 KB

Description:

Quartz crystal low profile hc49s leaded crystal.

Note:

This datasheet PDF includes multiple part numbers: CY12BPS, CY12AS.
Please refer to the document for exact specifications by model.
