CY20APSMD Quartz Crystal Surface Mount HC49S SMD Crystal

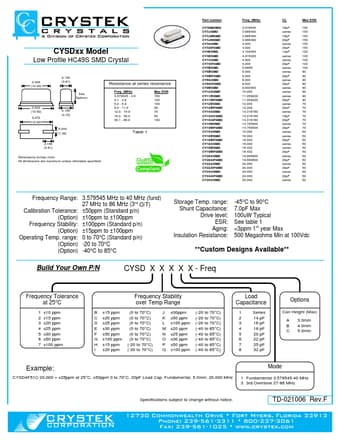

CYSDxx Model Low Profile HC49S SMD Crystal 0.405 (10.30) 0.532 (13.50) 0.472 (12.00) 0.150 (3.81) See Options 0.185 (4.70) 0.040 (1.02) Resistance at series resonance Freq. (MHz) 3.579545 - 4.0 4.1 - 4.9 5.0 - 5.9 6.0 - 11.9 12.0 - 14.9 15.0 - 30.0 30.1 - 86.0 Max ESR 150 120 100 90 70 50 100 Table 1 0.150 (3.81) Dimensions inches (mm) All dimensions are maximum unless otherwise specified Part number CY3DMSMD CY3JSMD CY3JMSMD CY3JNSMD CY3ASMD CY3APSMD CY4ESMD CY4DSMD CY7ASMD CY7APSMD CY5.

CY20APSMD Datasheet (62.32 KB)

CY20APSMD Datasheet Preview — Preview of CY20APSMD PDF

Datasheet Details

Part number:

CY20APSMD

Manufacturer:

Crystek Corporation

File Size:

62.32 KB

Description:

Quartz crystal surface mount hc49s smd crystal.
