MBR20150F, MBR2035F Schottky Diodes & Rectifiers

CumSumI

Description

RoHS compliant MBR2035F THRU MBR20150F ® .

📥 Download Datasheet

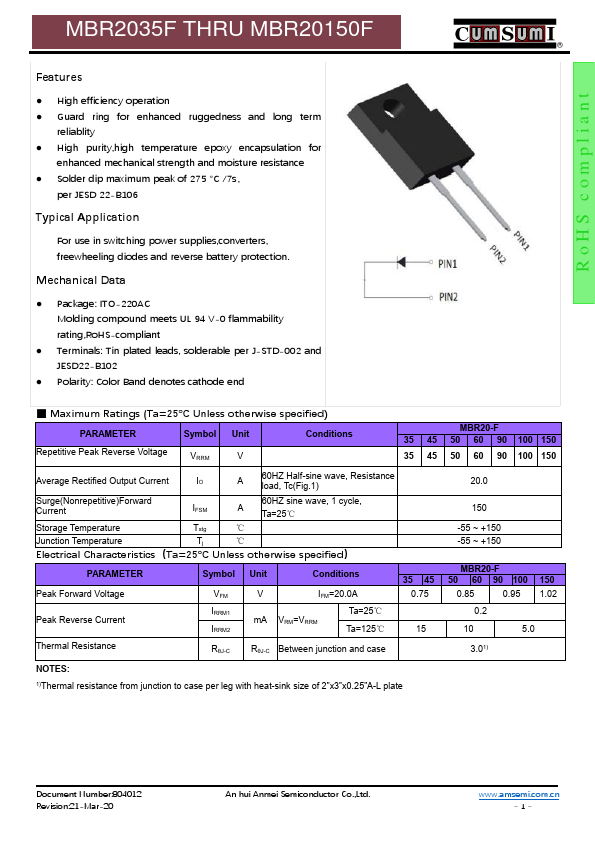

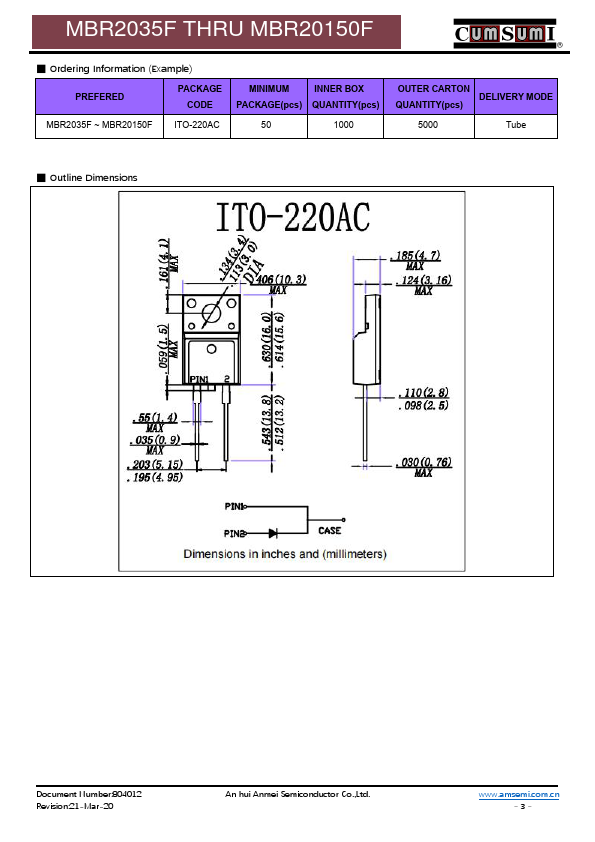

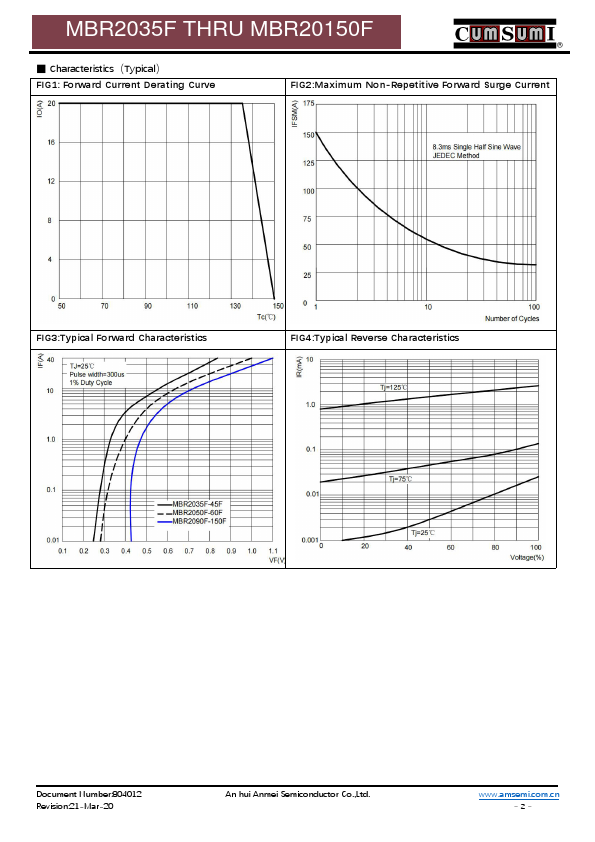

MBR20150F Datasheet Preview — This datasheet PDF includes multiple part numbers: MBR20150F, MBR2035F. Please refer to the document for exact specifications by model.

Datasheet Specifications

Part number: MBR20150F, MBR2035F
Manufacturer: CumSumI
File Size: 560.81 KB
Datasheet: MBR2035F-CumSumI.pdf
Description: Schottky Diodes & Rectifiers
Note: This datasheet PDF includes multiple part numbers: MBR20150F, MBR2035F.
Please refer to the document for exact specifications by model.

Features

* High efficiency operation
* Guard ring for enhanced ruggedness and long term reliablity
* High purity,high temperature epoxy encapsulation for enhanced mechanical strength and moisture resistance

Applications

* or for any other application in which the failure of the AM product could result in personal injury or death. Customers using or selling AM products not expressly indicated for use in such applications do so at their own risk. Please contact authorized AM personnel to obtain written terms and condit
