MBRF1045, MBRF1035 Isolated 10.0 AMPS. Schottky Barrier Rectifiers

MBRF1045 Description

RoHS compliant 1A TMHRU 1A7 BRF1035 thru MBRF10200 ® Isolated 10.0 AMPS.Schottky Barrier Rectifiers .

MBRF1045 Features

* Plastic material used carries Underwriters Laboratory Classifications 94V-0 Metal silicon junction, majority carrier conduction Low power loss, high efficiency High current capability, low forward voltage drop High surge capability For use in low voltage, high frequency inverters, free wheeling, and

MBRF1045 Applications

* Guardring for overvoltage protection High temperature soldering guaranteed: 260oC/10 seconds,0.25”(6.35mm)from case Mechanical Data Cases: JEDEC ITO-220AC molded plastic body Terminals: Pure tin plated, lead free. solderable per MIL-STD-750, Method 2026 Polarity: As marked Mounting position: Any Mou

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: MBRF1045, MBRF1035. Please refer to the document for exact specifications by model.

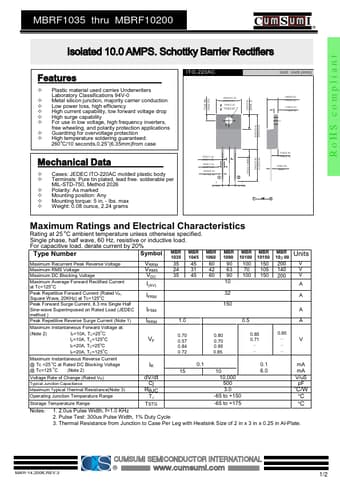

datasheet Preview Page 2

Datasheet Details

Part number
MBRF1045, MBRF1035
Manufacturer
CumSumI
File Size
297.38 KB
Datasheet
MBRF1035-CumSumI.pdf
Description
Isolated 10.0 AMPS. Schottky Barrier Rectifiers
Note
This datasheet PDF includes multiple part numbers: MBRF1045, MBRF1035.
Please refer to the document for exact specifications by model.
