CCG6 USB Type-C Port Controller

Cypress Semiconductor

Description

 EZ-PD™ CCG6 USB Type-C Port Controller General .
EZ-PD™ CCG6 is a one-port USB Type-C controller that complies with the latest USB Type-C and PD specifications.

📥 Download Datasheet

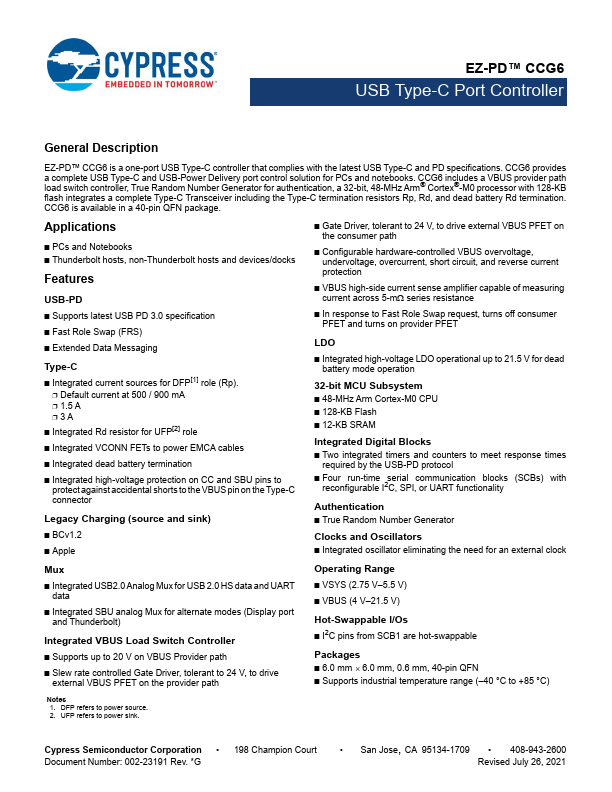

CCG6 Datasheet Preview — Preview of CCG6 PDF

Datasheet Specifications

Part number: CCG6
Manufacturer: Cypress Semiconductor
File Size: 475.56 KB
Datasheet: CCG6-CypressSemiconductor.pdf
Description: USB Type-C Port Controller

Features

* USB-PD
* Supports latest USB PD 3.0 specification
* Fast Role Swap (FRS)
* Extended Data Messaging Type-C
* Integrated current sources for DFP[1] role (Rp).
* Default current at 500 / 900 mA
* 1.5 A
* 3A
* Integrated Rd resistor for UFP[2] role
* Integrated VCONN

Applications

* PCs and Notebooks
