CY14B101Q1 - 1-Mbit (128K x 8) Serial SPI nvSRAM

Name: CY14B101Q1
SKU: CY14B101Q1-1280810

Cypress Semiconductor

The CY14B101Q1 by Cypress Semiconductor is a 1-Mbit (128K x 8) Serial SPI nvSRAM. Below is the official datasheet preview.

Datasheet Details

Part number	CY14B101Q1
Manufacturer	Cypress Semiconductor
File Size	800.86 KB
Description	1-Mbit (128K x 8) Serial SPI nvSRAM
Datasheet	CY14B101Q1-CypressSemiconductor.pdf

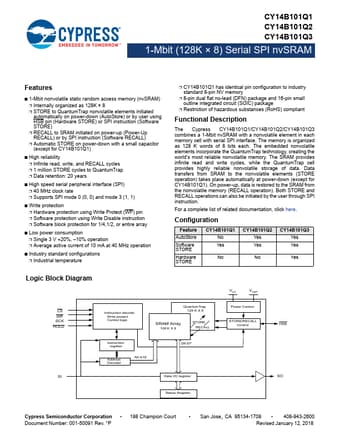

Additional preview pages of the CY14B101Q1 datasheet.

1-Mbit nonvolatile static random access memory (nvSRAM).
Internally organized as 128K × 8.
STORE to QuantumTrap nonvolatile elements initiated automatically on power-down (AutoStore) or by user using HSB pin (Hardware STORE) or SPI instruction (Software STORE).
RECALL to SRAM initiated on power-up (Power-Up RECALL) or by SPI instruction (Software RECALL).
Automatic STORE on power-down with a small capacitor (except for CY14B101Q1).
High reliability.
Infinite r.
