CY14U256LA - 256-Kbit (32K x 8) nvSRAM

Name: CY14U256LA
SKU: CY14U256LA-1303535

Cypress Semiconductor

The CY14U256LA by Cypress Semiconductor is a 256-Kbit (32K x 8) nvSRAM. Below is the official datasheet preview.

Datasheet Details

Part number	CY14U256LA
Manufacturer	Cypress Semiconductor
File Size	408.75 KB
Description	256-Kbit (32K x 8) nvSRAM
Datasheet	CY14U256LA-CypressSemiconductor.pdf

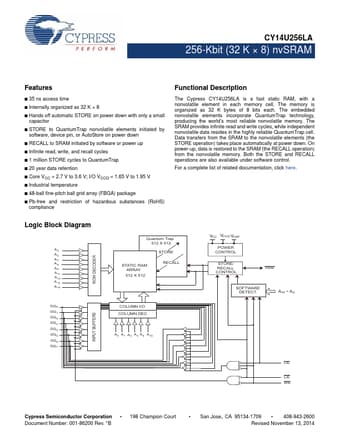

Additional preview pages of the CY14U256LA datasheet.

The Cypress CY14U256LA is a fast static RAM, with a nonvolatile element in each memory cell.

35 ns access time.
Internally organized as 32 K × 8.
Hands off automatic STORE on power down with only a small capacitor.
STORE to QuantumTrap nonvolatile elements initiated by software, device pin, or AutoStore on power down.
RECALL to SRAM initiated by software or power up.
Infinite read, write, and recall cycles.
1 million STORE cycles to QuantumTrap.
20 year data retention.
Core VCC = 2.7 V to 3.6 V; I/O VCCQ = 1.65 V to 1.95 V.
Industrial t.
