CY22391

Factory Programmable Quad PLL Clock Generator

Cypress Semiconductor

CY22391 Features

* Fully integrated phase-locked loops (PLLs)

* Small quad flat no-leads (QFN) package option

* 40% smaller than 20-pin TSSOP

* 22% smaller than 16-pin TSSOP

* Selectable output frequency

* Programmable output frequencies

* Output frequency range:

* 1 MHz to 166 MHz

CY22391 Datasheet (591.39 KB)

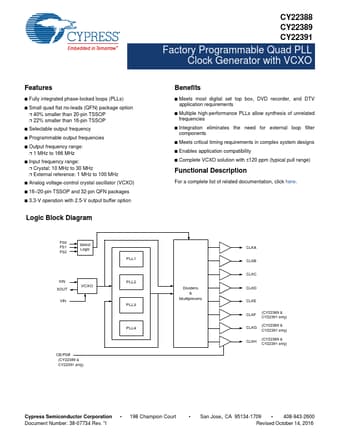

CY22391 Datasheet Preview — Preview of CY22391 PDF

Datasheet Details

Part number:

CY22391

Manufacturer:

Cypress Semiconductor

File Size:

591.39 KB

Description:

Factory programmable quad pll clock generator.
