CY7B9940V, CY7B9930V - (CY7B9930V / CY7B9940V) High Speed Multifrequency PLL Clock Buffer

Cypress Semiconductor

📥 Download Datasheet

CY7B9940V Datasheet Preview — This datasheet PDF includes multiple part numbers: CY7B9940V, CY7B9930V. Please refer to the document for exact specifications by model.

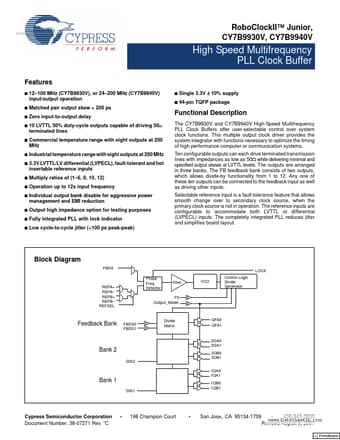

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	CY7B9940V, CY7B9930V
Manufacturer	Cypress Semiconductor
File Size	350.94 KB
Description	(CY7B9930V / CY7B9940V) High Speed Multifrequency PLL Clock Buffer
Datasheet	CY7B9930V_CypressSemiconductor.pdf
Note	This datasheet PDF includes multiple part numbers: CY7B9940V, CY7B9930V. Please refer to the document for exact specifications by model.

CY7B9940V Product details

Description

The CY7B9930V and CY7B9940V High-Speed Multifrequency PLL Clock Buffers offer user-selectable control over system clock functions.

Features

12.
100 MHz (CY7B9930V), or 24.
200 MHz (CY7B9940V) input/output operation Matched pair output skew < 200 ps Zero input-to-output delay 10 LVTTL 50% duty-cycle outputs capable of driving 50ω terminated lines Commercial temperature range with eight outputs at 200 MHz Industrial temperature range with eight outputs at 200 MHz 3.3V LVTTL/LV differential (LVPECL), fault-tolerant and hot insertable reference.
