CY8C20246, CY8C20X36 - (CY8C20Xx6) CapSense Applications

Cypress Semiconductor

📥 Download Datasheet

CY8C20246 Datasheet Preview — This datasheet PDF includes multiple part numbers: CY8C20246, CY8C20X36. Please refer to the document for exact specifications by model.

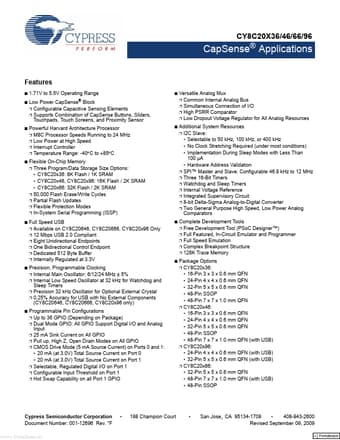

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	CY8C20246, CY8C20X36
Manufacturer	Cypress Semiconductor
File Size	1.06 MB
Description	(CY8C20Xx6) CapSense Applications
Datasheet	CY8C20X36_CypressSemiconductor.pdf
Note	This datasheet PDF includes multiple part numbers: CY8C20246, CY8C20X36. Please refer to the document for exact specifications by model.

CY8C20246 Product details

Features

CY8C20X36/46/66/96 ® 1.71V to 5.5V Operating Range Low Power CapSense Block.
Configurable Capacitive Sensing Elements.
Supports Combination of CapSense Buttons, Sliders, Touchpads, Touch Screens, and Proximity Sensor Powerful Harvard Architecture Processor.
M8C Processor Speeds Running to 24 MHz.
Low Power at High Speed.
Interrupt Controller.
Temperature Range: -40°C to +85°C Flexible On-Chip Memory.
Three Program/Data Storage Size Options:.
