CY8C24223, CY8C24123 Datasheet - Cypress Semiconductor

CY8C24223, CY8C24123, (CY8C24x23) PSoC Mixed Signal Array

PSoC™ Mixed Signal Array CY8C24123, CY8C24223, and CY8C24423 Final Data Sheet .

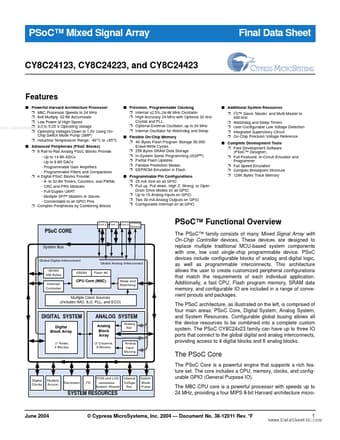

datasheet Preview Page 1 from Datasheet4u.com

CY8C24123_CypressSemiconductor.pdf

CY8C24223 Datasheet Preview — This datasheet PDF includes multiple part numbers: CY8C24223, CY8C24123. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

CY8C24223, CY8C24123

Manufacturer:

Cypress Semiconductor

File Size:

682.21 KB

Description:

(CY8C24x23) PSoC Mixed Signal Array

Note:

This datasheet PDF includes multiple part numbers: CY8C24223, CY8C24123.
Please refer to the document for exact specifications by model.

Features

* Powerful Harvard Architecture Processor
* M8C Processor Speeds to 24 MHz
* 8x8 Multiply, 32-Bit Accumulate
* Low Power at High Speed
* 3.0 to 5.25 V Operating Voltage www. DataSheet4U. com
* Operating Voltages Down to 1.0V Using OnChip Switch Mode Pump (SMP)
* Industrial

Applications

* The clocks can be routed to both the digital and analog systems. Additional clocks can be generated using digital PSoC blocks as clock dividers. A multiply accumulate (MAC) provides a fast 8-bit multiplier with 32-bit accumulate, to assist in both general math as well as digital filters. The decima
