CY8CLED01D01 - PowerPSoC Intelligent LED Driver

Cypress Semiconductor

📥 Download Datasheet

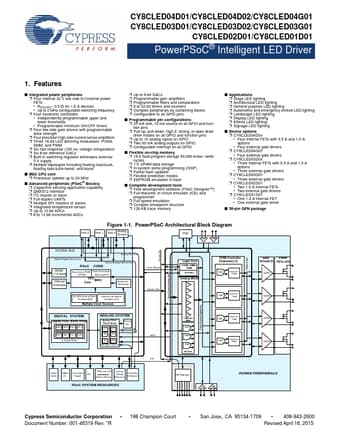

CY8CLED01D01 Datasheet Preview — Preview of CY8CLED01D01 PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	CY8CLED01D01
Manufacturer	Cypress Semiconductor
File Size	794.51 KB
Description	PowerPSoC Intelligent LED Driver
Datasheet	CY8CLED01D01_CypressSemiconductor.pdf

CY8CLED01D01 Product details

Features

Integrated power peripherals.
Four internal 32 V low side N-Channel power FETs.
RDS(ON).
0.5  for 1.0 A devices.
Up to 2 MHz configurable switching frequency.
Four hysteretic controllers.
Independently programmable upper and lower thresholds.
Programmable minimum ON/OFF timers.
Four low side gate drivers with programmable drive strength.
Four precision high side current sense amplifiers.
Three 16-bit LED dimming modulat.
