CY91520 - 32-bit Microcontroller

Cypress Semiconductor

📥 Download Datasheet

CY91520 Datasheet Preview — Preview of CY91520 PDF

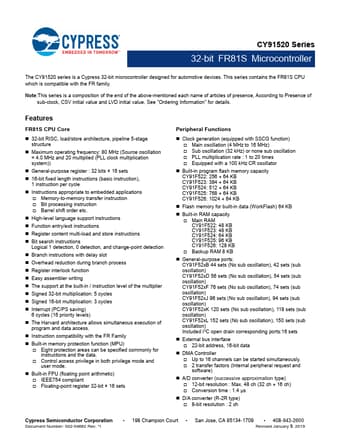

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	CY91520
Manufacturer	Cypress Semiconductor
File Size	4.69 MB
Description	32-bit Microcontroller
Datasheet	CY91520-CypressSemiconductor.pdf

CY91520 Product details

Features

FR81S CPU Core.
32-bit RISC, load/store architecture, pipeline 5-stage structure.
Maximum operating frequency: 80 MHz (Source oscillation = 4.0 MHz and 20 multiplied (PLL clock multiplication system)).
General-purpose register : 32 bits × 16 sets.
16-bit fixed length instructions (basic instruction), 1 instruction per cycle.
Instructions appropriate to embedded.
