CYBLE-212006-01

Creator XR Module

CYBLE-212006-01 General Description

The CYBLE-2X20XX-X1 is a Bluetooth Low Energy wireless module solution. The CYBLE-2X20XX-X1 is a turnkey solution and includes onboard crystal oscillators, passive components, and the Cypress PSoC 4 Bluetooth LE. Refer to the PSoC 4 Bluetooth LE datasheet for additional details on the capabilities .

CYBLE-212006-01 Datasheet (952.28 KB)

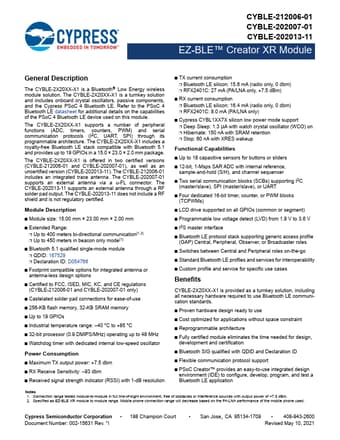

Preview of CYBLE-212006-01 PDF

Datasheet Details

Part number:

CYBLE-212006-01

Manufacturer:

Cypress Semiconductor

File Size:

952.28 KB

Description:

Creator xr module.
CYBLE-212006-01 CYBLE-202007-01 CYBLE-202013-11 EZ-BLE™ Creator XR Module CYBLE-212006-01, CYBLE-202007-01, CYBLE-202013-11 EZ-BLE™ Creator XR Module.
