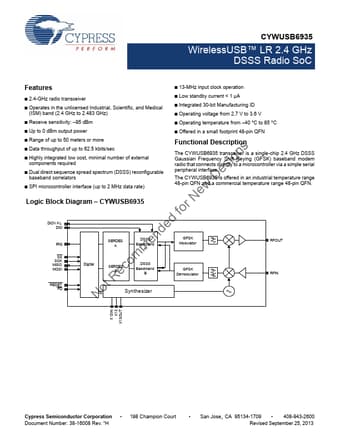

CYWUSB6935
CYWUSB6935 is WirelessUSB LRTM 2.4-GHz DSSS Radio SoC manufactured by Cypress.
Not Remended for New Designs
WirelessUSB™ LR 2.4 GHz DSSS Radio SoC
WirelessUSB™ LR 2.4 GHz DSSS Radio SoC
Features
- 2.4-GHz radio transceiver
- Operates in the unlicensed Industrial, Scientific, and Medical
(ISM) band (2.4 GHz to 2.483 GHz)
- Receive sensitivity:
- 95 dBm
- Up to 0 dBm output power
- Range of up to 50 meters or more
- Data throughput of up to 62.5 kbits/sec
- Highly integrated low cost, minimal number of external ponents required
- Dual direct sequence spread spectrum (DSSS) reconfigurable baseband correlators
- SPI microcontroller interface (up to 2 MHz data rate)
Logic Block Diagram
- CYWUSB6935
- 13-MHz input clock operation
- Low standby current <...
