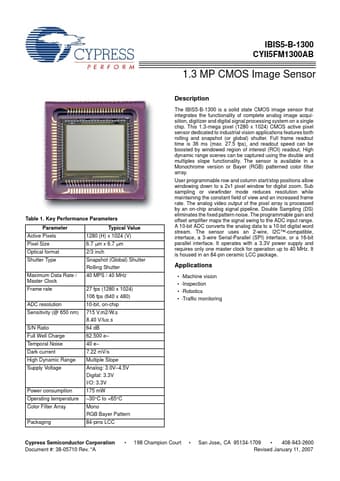

IBIS5-B-1300 1.3MP CMOS Image Sensor

IBIS5-B-1300 CYII5FM1300AB 1.3 MP CMOS Image Sensor Table 1. Key Performance Parameters Parameter Active Pixels Pixel Size Optical format Typical Value 1280 (H) x 1024 (V) 6.7 µm x 6.7 µm 2/3 inch Shutter Type Snapshot (Global) Shutter Rolling Shutter Maximum Data Rate / Master Clock Frame rate ADC resolution Sensitivity (@ 650 nm) S/N Ratio Full Well Charge Temporal Noise Dark current High Dynamic Range 40 MPS / 40 MHz 27 fps (1280 x 1024) 106 fps (640 x 480) 10-bit, on-chip 715 V.m2/W.s.

IBIS5-B-1300 Features

* both rolling and snapshot (or global) shutter. Full frame readout time is 36 ms (max. 27.5 fps), and readout speed can be boosted by windowed region of interest (ROI) readout. High dynamic range scenes can be captured using the double and multiples slope functionality. The sensor is available in a M
