IMISM561, Spread Spectrum Clock Generator

SM561 Spread Spectrum Clock Generator .
Pin Number 1 2 3 4 5 Pin Name Xin/CLK VDD GND SSCLK SSCC Pin Type I P P O I Pin Description Clock or Crystal connection input.

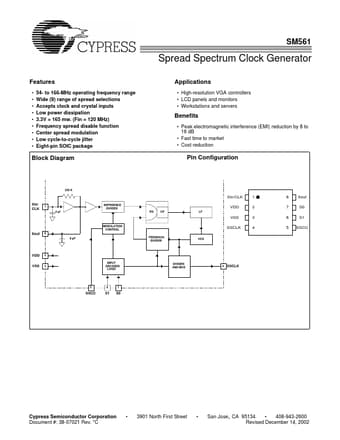

datasheet Preview Page 1 from Datasheet4u.com

IMISM561_CypressSemiconductor.pdf

IMISM561 Datasheet Preview — Preview of IMISM561 PDF

Datasheet Details

Part number:

IMISM561

Manufacturer:

Cypress Semiconductor

File Size:

126.14 KB

Description:

Spread Spectrum Clock Generator

Features

* 54- to 166-MHz operating frequency range Wide (9) range of spread selections Accepts clock and crystal inputs Low power dissipation 3.3V = 165 mw. (Fin = 120 MHz) Frequency spread disable function Center spread

Applications

* High-resolution VGA controllers
* LCD panels and monitors
* Workstations and servers Benefits
* Peak electromagnetic interference (EMI) reduction by 8 to 16 dB
* Fast time to market
* Cost reduction Block Diagram Pin Configuration 250 K Xin/CLK
