S6E2DF5G0A Datasheet - Cypress Semiconductor

S6E2DF5G0A Microcontroller

S6E2DF Series 32-bit ARM® Cortex®-M4F FM4 Microcontroller Devices in the S6E2DF Series are highly integrated 32-bit microcontrollers with high performance and competitive cost. This series is based on the ARM Cortex-M4F Processor with on-chip Flash memory and SRAM. The series has peripheral functions such as graphics engine, display controller, motor control timers, ADCs, and Communication Interfaces (USB, UART, CSIO, I2C, LIN). The products that are described in this data sheet are TYPE4-M4 ca.

S6E2DF5G0A Features

* 32-bit ARM Cortex-M4F Core

* Processor version: r0p1

* Up to 160 MHz frequency operation

* Built-in FPU

* Supports DSP instructions

* Memory Protection Unit (MPU): improves the reliability of an embedded system

* Integrated Nested Vectored Interrupt Controller (NVIC): 1 NMI (non-m

S6E2DF5G0A Datasheet (2.69 MB)

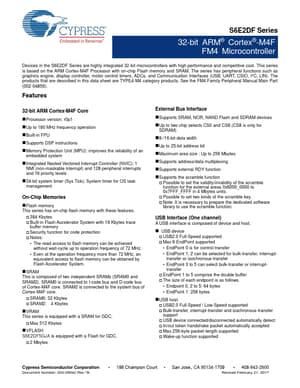

S6E2DF5G0A Datasheet Preview — Preview of S6E2DF5G0A PDF

Datasheet Details

Part number:

S6E2DF5G0A

Manufacturer:

Cypress Semiconductor

File Size:

2.69 MB

Description:

Microcontroller.
