S6E2H44 32-bit FM4 Microcontroller

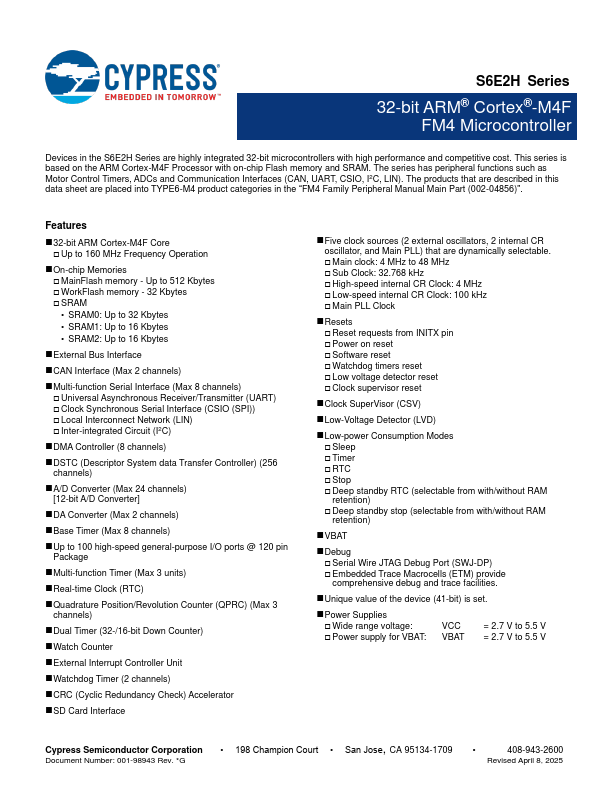

S6E2H Series 32-bit ARM® Cortex®-M4F FM4 Microcontroller Devices in the S6E2H Series are highly integrated 32-bit microcontrollers with high performance and competitive cost. This series is based on the ARM Cortex-M4F Processor with on-chip Flash memory and SRAM. The series has peripheral functions such as Motor Control Timers, ADCs and Communication Interfaces (CAN, UART, CSIO, I2C, LIN). The products that are described in this data sheet are placed into TYPE6-M4 product categories in the “FM4 .

S6E2H44 Features

* 32-bit ARM Cortex-M4F Core  Up to 160 MHz Frequency Operation

* On-chip Memories  MainFlash memory - Up to 512 Kbytes  WorkFlash memory - 32 Kbytes  SRAM

* SRAM0: Up to 32 Kbytes

* SRAM1: Up to 16 Kbytes

* SRAM2: Up to 16 Kbytes

* External Bus Interface

* CA

S6E2H44 Datasheet (2.03 MB)

S6E2H44 Datasheet Preview — Preview of S6E2H44 PDF

Datasheet Details

Part number:

S6E2H44

Manufacturer:

Cypress Semiconductor

File Size:

2.03 MB

Description:

32-bit fm4 microcontroller.
