S6E2HG4, S6E2HG6 - 32-bit FM4 Microcontroller

Cypress Semiconductor

📥 Download Datasheet

S6E2HG4 Datasheet Preview — This datasheet PDF includes multiple part numbers: S6E2HG4, S6E2HG6. Please refer to the document for exact specifications by model.

Datasheet Details

Part number	S6E2HG4, S6E2HG6
Manufacturer	Cypress Semiconductor
File Size	2.03 MB
Description	32-bit FM4 Microcontroller
Datasheet	S6E2HG6-CypressSemiconductor.pdf
Note	This datasheet PDF includes multiple part numbers: S6E2HG4, S6E2HG6. Please refer to the document for exact specifications by model.

S6E2HG4 Product details

Description

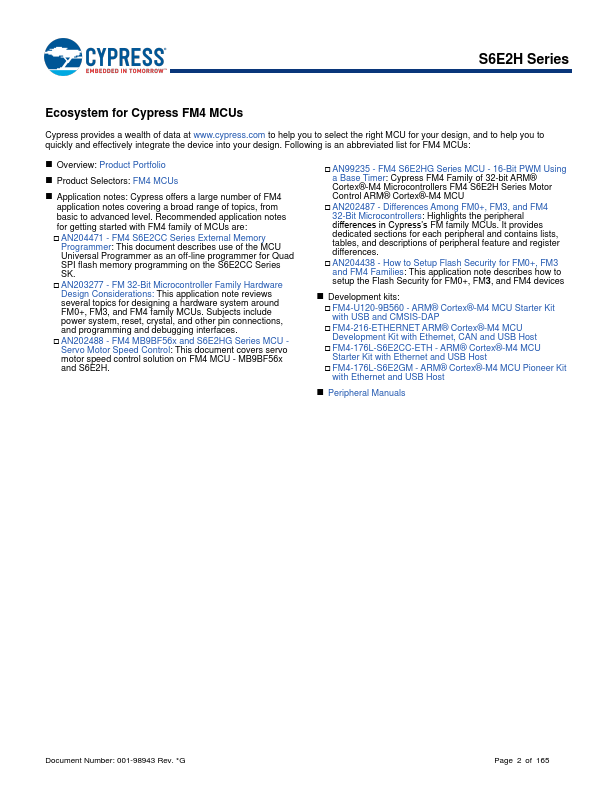

of peripheral feature and register differences. Development kits:  FM4-U120-9B560 - ARM® Cortex®-M4 MCU Starter Kit with USB and CMSIS-DAP  FM4-216-ETHERNET ARM® Cortex®-M4 MCU Development Kit with Ethernet, CAN and USB Host  FM4

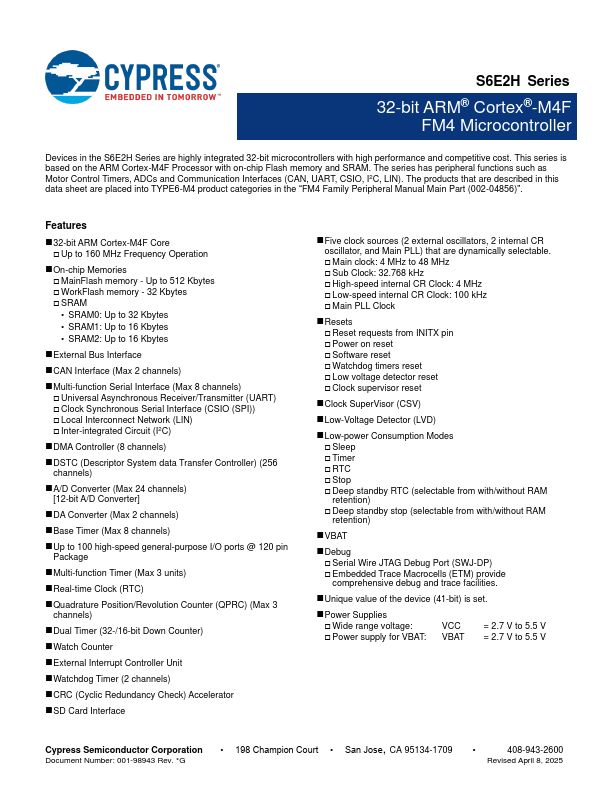

Features

32-bit ARM Cortex-M4F Core  Up to 160 MHz Frequency Operation.
On-chip Memories  MainFlash memory - Up to 512 Kbytes  WorkFlash memory - 32 Kbytes  SRAM.
SRAM0: Up to 32 Kbytes.
SRAM1: Up to 16 Kbytes.
SRAM2: Up to 16 Kbytes.
External Bus Interface.
CAN Interface (Max 2 channels).
Multi-function Serial Interface (Max 8 channels)  Universal Asynchronous Receiver/Transmitter (UART)  Clock Synchronous Serial Interface (CSIO (SPI))  Local Interc.
