W182

Full Feature Peak Reducing EMI Solution

Image Manufacturer B2B MPN Description Distributor Stock Quantity Price Buy Now
Distributor TDK Corporation C2012C0G2W182J085AA CAP CER 1800PF 450V C0G 0805 DigiKey 8950 1000 units
$0.07

W182 Datasheet (124.98 KB)

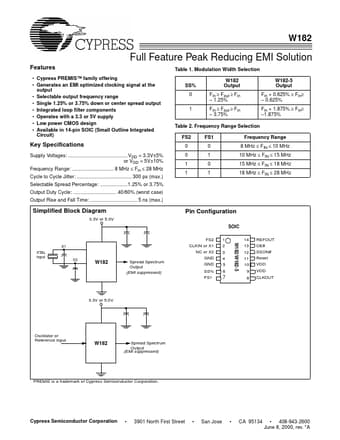

Preview of W182 PDF Datasheet

Datasheet Details

Part number:

W182

Manufacturer:

Cypress Semiconductor

File Size:

124.98 KB

Description:

Full feature peak reducing emi solution

W182 Features

* Cypress PREMIS™ family offering

* Generates an EMI optimized clocking signal at the output

* Selectable output frequency range

* Single 1.25% or 3.75% down or center spread output

* Integrated loop filter components

* Operates with a 3.3 or 5V supply

W182 General Description

Output Modulated Frequency: Frequency modulated copy of the input clock (SSON# asserted). Non-Modulated Output: This pin provides a copy of the reference frequency. This output will not have the Spread Spectrum feature enabled regardless of the state of logic input SSON#. Crystal Connection or Exter.
