CG7480AT

8-Mbit (512 K x 16) Static RAM

CG7480AT Features

* Temperature ranges

* 40 °C to 125 °C

* High speed

* tAA = 15 ns

* Low active power

* ICC = 120 mA at 67 MHz

* Low CMOS standby power

* ISB2 = 20 mA

* 2.0-V data retention

* Automatic power-down when deselected

* Transistor-transistor logic (TTL)

CG7480AT General Description

The CG7480AT is a high performance CMOS Static RAM organized as 512 K words by 16 bits. To write to the device, take Chip Enable (CE) and Write Enable (WE) inputs LOW. If Byte LOW Enable (BLE) is LOW, then data from I/O pins (I/O0

*I/O7), is written into the location specified on the address .

CG7480AT Datasheet (387.02 KB)

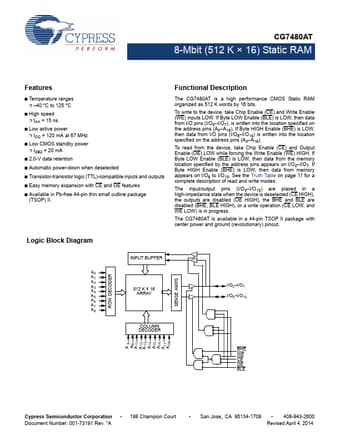

Preview of CG7480AT PDF

Datasheet Details

Part number:

CG7480AT

Manufacturer:

Cypress

File Size:

387.02 KB

Description:

8-mbit (512 k x 16) static ram.
