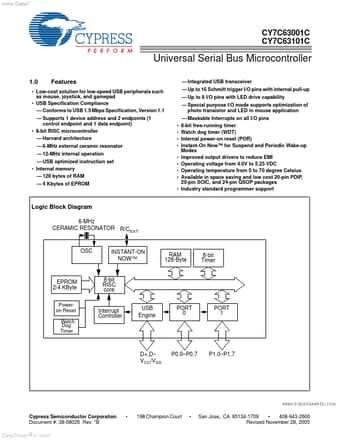

CY7C63101C - (CY7C63001C / CY7C63101C) Universal Serial Bun Microcontroller

Port 0 bit 0 Port 0 bit 1 Port 0 bit 2 Port 0 bit 3 Port 0 bit 4 Port 0 bit 5 Port 0 bit 6 Port 0 bit 7 Port 1 bit 0 Port 1 bit 1 Port 1 bit 2 Port 1 bit 3 Port 1 bit 4 Port 1 bit 5 Port 1 bit 6 Port 1 bit 7 Ceramic resonator in Ceramic resonator out Page 2 of 28 XTALOUT Document #: 38-08026 Rev. .

CY7C63101C Features

* Integrated USB transceiver

* Up to 16 Schmitt trigger I/O pins with internal pull-up

* Up to 8 I/O pins with LED drive capability

* Special purpose I/O mode supports optimization of photo transistor and LED in mouse application
