ICD2053B - Programmable Clock Generator

ICD2053B Description

( DataSheet : www.DataSheet4U.com ) ICD2053B Programmable Clock Generator .
The ICD2053B Programmable Clock Generator offers a fully user-programmable phase-locked loop in a single 8-pin package.

ICD2053B Features

* Clock outputs ranging from 391 kHz to 100 MHz (TTL levels) or 90 MHz (CMOS levels)
* 2-wire serial interface facilitates programmable output frequency
* Phase-Locked Loop oscillator input derived from external reference clock (1 MHz to 25 MHz) or External Crystal (2 MHz to

ICD2053B Applications

* 8-pin 150-mil packaging achieves minimum footprint for space-critical applications
* 5V operation

📥 Download Datasheet

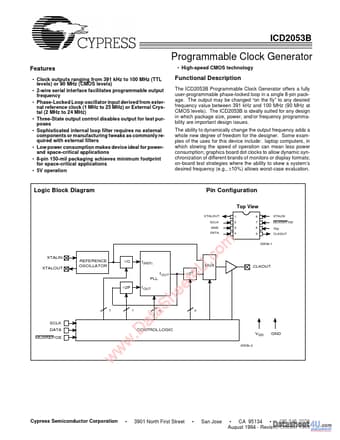

Preview of ICD2053B PDF
