S6J336AHTBSC20000 32-bit T1G Microcontroller

15 5.1 Pin Descriptions 15 5.2 I/O Circuit Type 55 5.3 Input Level Setting/ Output Drive Capacity Setting60 6. Block Diagram 68 7. Electrical Characteristics 69 7.1 Absolute Maximum Ratings69 7.2 Recommended Operating Conditions72 7.3 DC Characteristics 77 7.4 AC Characteristics 84 7.5 A/D Conver.

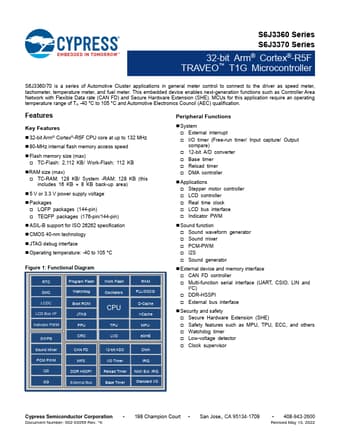

S6J3360 Series S6J3370 Series 32-bit Arm® Cortex®-R5F TRAVEO™ T1G Microcontroller S6J3360/70 is a series of Automotive Cluster applications in general meter control to connect to the driver as speed meter, tachometer, temperature meter, and fuel meter. This embedded device enables next-generation functions such as Controller Area Network with Flexible Data rate (CAN FD) and Secure Hardware Extension (SHE). MCUs for this application require an operating temperature range of TA -40 °C to 105 °C a.

S6J336AHTBSC20000 Features

* Key Features

* 32-bit Arm® Cortex®-R5F CPU core at up to 132 MHz

* 80-MHz internal flash memory access speed

* Flash memory size (max)  TC-Flash: 2,112 KB/ Work-Flash: 112 KB

* RAM size (max)  TC-RAM: 128 KB/ System -RAM: 128 KB (this includes 16 KB + 8 KB back-up area)

* 5 V or
