BAT54S2 Small Signal Schottky diode

BAT54S2 Description

CYStech Electronics Corp.Small Signal Schottky diode Spec.No.: C302S www.DataSheet4U.com Issued Date : 2004.11.26 Revised Date : Page No.: 1/4 B.
Planar silicon Schottky barrier diode encapsulated in a SOD-323 very small plastic SMD package. Guard ring protected. Low f.

BAT54S2 Features

* Guard ring protected
* Low forward voltage drop

BAT54S2 Applications

* Ultra high-speed switching
* Voltage clamping
* Protection circuits
* Blocking diodes Symbol Outline SOD-323 BAT54S2 BAT54S2 CYStek Product Specification CYStech Electronics Corp. Absolute Maximum Ratings Symbol VR IF IFRM IFSM Ptot Tstg Tj Tamb Parameter continuou

📥 Download Datasheet

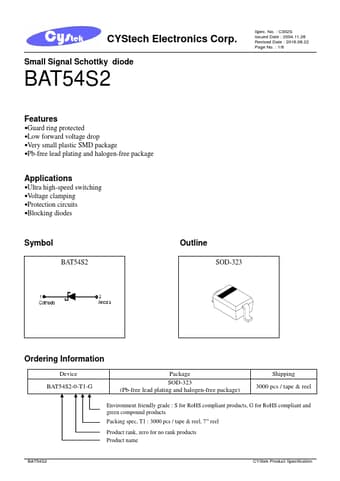

Preview of BAT54S2 PDF
